Fuji Electric - AQUA

Click here to download FRENIC-AQUA brochure. (4.0MB PDF file)

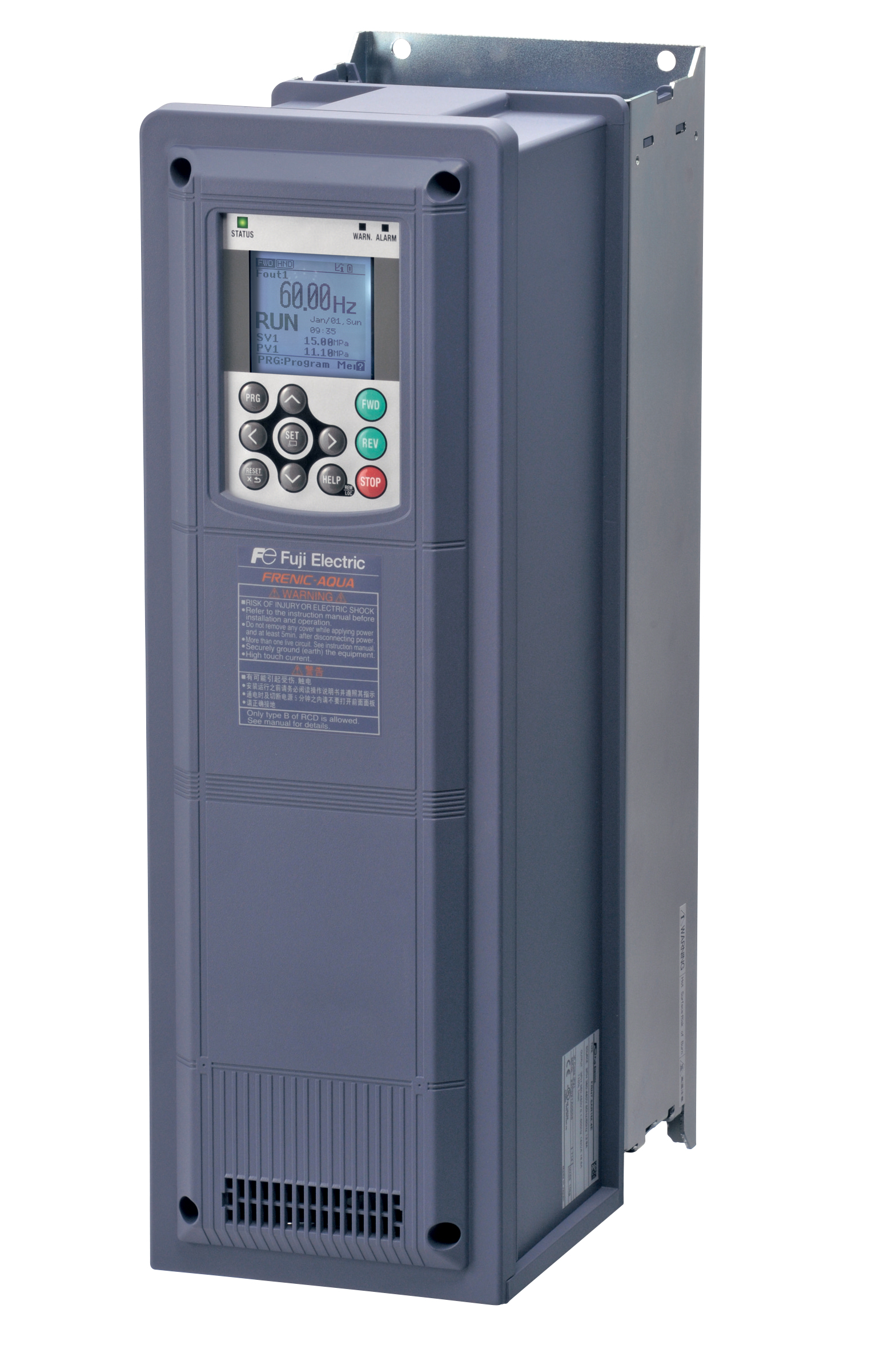

FRENIC-AQUA

The first slim-type inverter specialized in energy-saving.
By Fuji Electric (www.fujielectric.com)


Basic Technical Data

  • * WIDE VARIATION IN MODEL CAPACITY.
  • STANDARD TYPE (EMC BUILT IN TYPE)
  • 0.75 TO 710KW (PROTECTIVE STRUCTURE IP21 OR IP55 CAN BE SELECTED BETWEEN 0.75 AND 90 KW
  • DCR BUILT IN TYPE + EMC FILTER BUILT IN TYPE.
  • 0.75 TO 710KW (PROTECTIVE STRUCTURE IP21 OR IP55 CAN BE SELECTED BETWEEN 0.75 AND 90 KW.
  • * 3 ANALOG INPUTS,
  • * 9 PROGRAMMABLE DIGITAL INPUT
  • * BUILT IN SAFE TORQUE OFF (STO).
  • * 2 DRY CONTACT RELAY OUTPUT (PROGRAMMABLE)
  • * 4 TRANSISTOR OUTPUT (PROGRAMMABLE).
  • * 2 ANALOG OUTPUT (PROGRAMMABLE).
  • * RS 485 COM PORT (BACNET MSTP, MODBUS RTU, METASYS N2) STANDARD EQUIPMENT.
  • OPTION DEVICE: LONWORKS, ETHERNET, PROFIBUS, DEVICENET CANOPEN, CC-LINK



Advantages/Features:

  • OPTIMAL CONTROL WITH ENERGY SAVING FUNCTION
  • DEDICATED PUMP CONTROL FUNCTION PROVIDED AS STANDARD.
  • SLIM BODY
  • FUNCTION SUITABLE FOR HVAC USE
  • STAND ALONE
  • SEMI F47 VOLTAGE SAG IMMUNITY COMPLIANCE CERTIFIED
